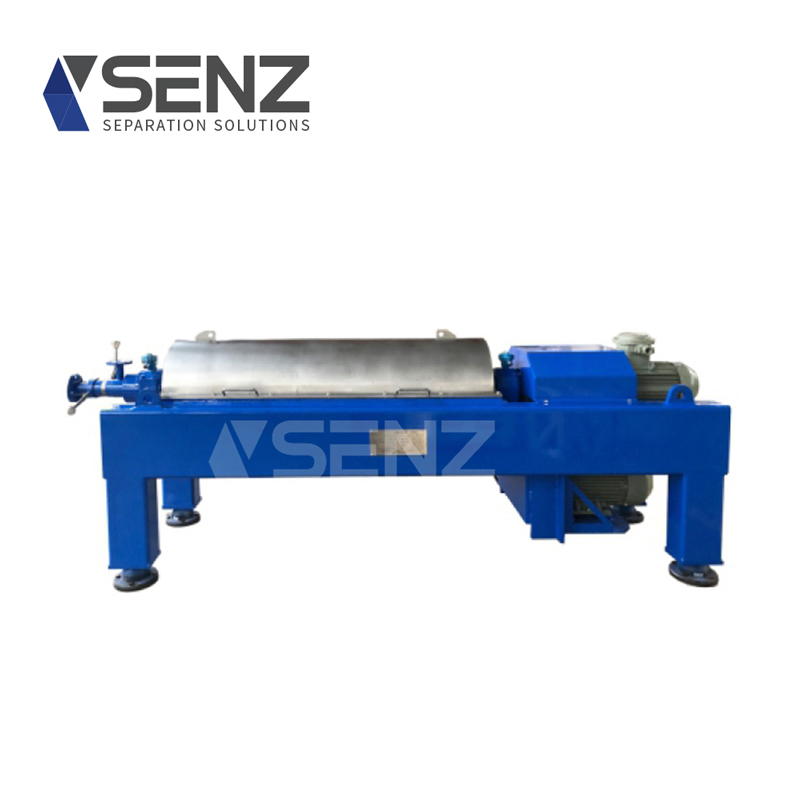

Three phase centrifuge is a kind of high efficiency separation equipment which utilizes the principle of centrifugal sedimentation to continuously separate oil and water residue.
It is mainly composed of drum, screw, differential system, liquid level baffle, drive system and control system.
Its structure is similar to that of a two-phase centrifuge. The centrifuge is mainly used to clarify or remove impurities in aging oil, waste oil and food waste oil.
Product Introduction
|
Name |
LWS355X1460-N |
|
Drum diameter |
355 mm / 14 in |
|
Drum length |
1460 mm / 57 in |
|
Maximum speed |
3500 rpm |
|
Standard speed |
2800 rpm |
|
Separating factor |
2435 |
|
Handling capacity |
5 m3/h |
|
Main motor power |
15 kW |
|
Auxiliary motor power |
7.5 kW |
|
Size |
3430 x 920 x 1220 mm / 135 x 36 x 48 in |
|
Weight |
2400 Kg |
